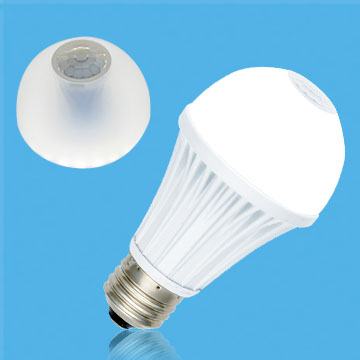

Model No: PIR PHENIX SERIES
Model No: PIR PHENIX SERIES
Operation
1. Switch on
2. Light out automatically after 40 seconds
3. Being the infrared sensor mode
4. Lamp will be automatically lit for 2mins when someone approaching to the
inductive zone
5. By switching off/on/off/on to be the working condition within 2 seconds.
Benefits
Last up to 30 times longer and used up to 80% less energy incandescent lamps
Contains no Mercury & RoHS Compliant
3-year limited warranty
Use Seoul Semiconductor LED, Global patent, marketing all over the world
Features
Instant-on light
Emits virtually no UV/IR light in the beam.
Rated at 40,000 hours life
Operating Temperature from-20°C to +45° C
Available for dimmable or Non-Dim
Technical Specifications
Base :E26/E27/B22
Voltage: 85-265V AC
CRI:≥80
140° beam angle
Dimension: Ф60*L116
Material: Aluminum+PC Cover
Model Product | Color Temperature |
Power | Luminous Flux(lm) |
Replace Incandescent lamp |
PP60-7W | CW(5500K) | 7W±10% | 620lm | 40W |
NW(4000K) | 7W±10% | 580lm | 40W | |
WW(3000K) | 7W±10% | 560lm | 40W | |
PP60-9W | CW(5500K) | 9W±10% | 810lm | 60W |
NW(4000K) | 9W±10% | 780lm | 60W | |
WW(3000K) | 9W±10% | 750lm | 60W |
